| Input Voltage Range | 100-240V AC |
| Input Voltage Frequency | 47-63Hz |
| Output Voltage | 5-24VDC |
| Output Current | 0.5-2A |
| Output Power (optional) | 12W Max |
| Certificates | UL/CUL/CE/CB/KC/PSE/GS/TUV/CCC/BIS/SAA... |
| AC Plug (optional) | US/UK/EU/KR/JP/AU... |
| DC Connector (optional) | 5.5x2.1/5.5x2.5/3.5x1.35(mm) |
| DC Wire Length (optional) | 1.2m/1.5m / 1.8m |
| Output Ripple and Noise | 100mvpp at full load with 20MHz bandwidth |
| Output Voltage Adjustable Rate | ±5% |
| No-load Power Consumption | <0.15W |
| Energy Efficiency Standard | Level VI |
| Transistor Connecting Method | Single-ended type |
| Turn On Delay Time | <3S (AC:110V and full load) |
The adapter can be widely used for CCTV, Router, CRV, LCD, LED, Set top box, Modem, Digital frame, Switch, etc.
The DC connector can be 5.5*2.1, 5.5*2.5, 3.5*1.35, 4.0*1.7, 2.5*0.7 barrel type dc jack or others as per your requirements.

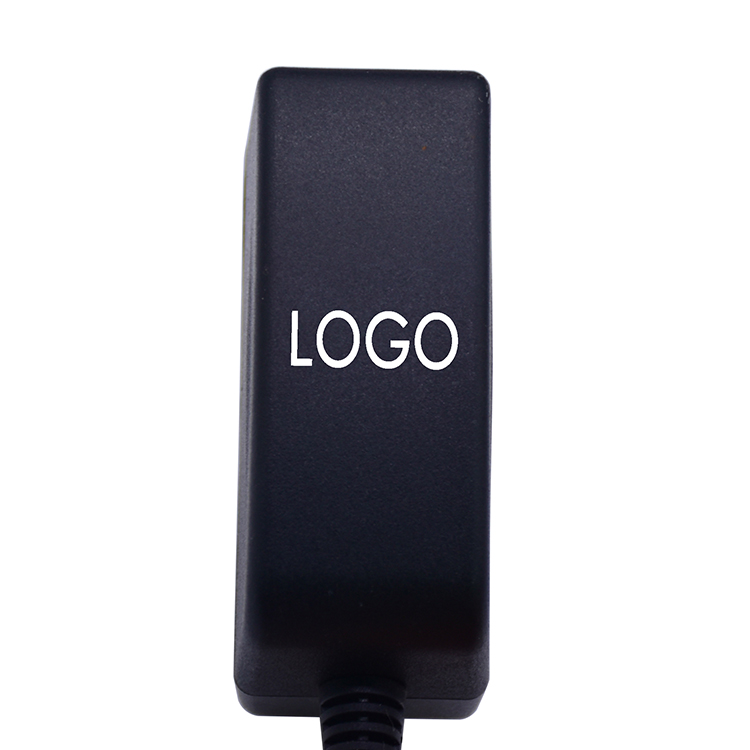

Our product holds multiple safety certifications, including UL, CE, PSE, KC, RCM, SAA, UKCA, and RoHS, ensuring compliance with international safety standards. Additionally, you can customize the adapter with your logo on the casing.
